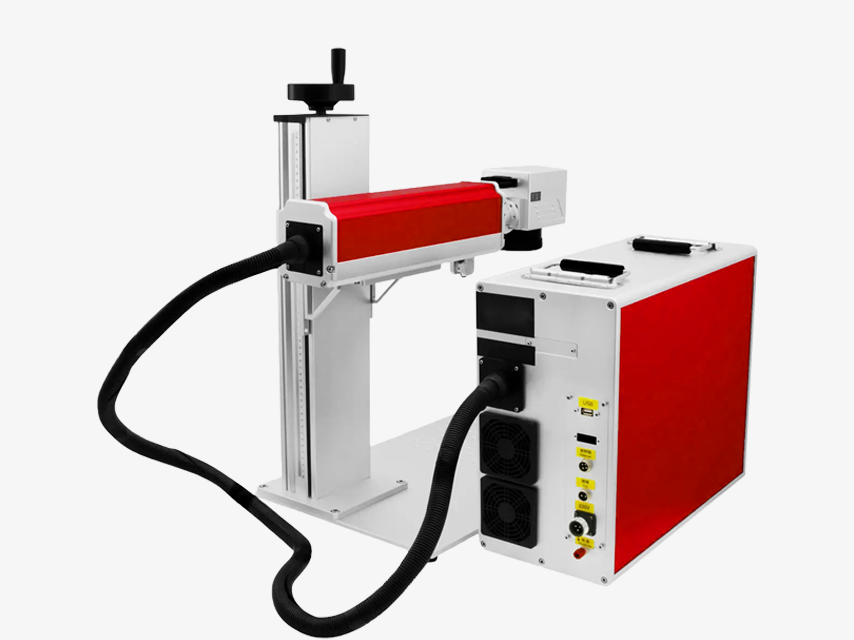

Fiber Laser Marking Machine Vector ML-30
4 200 €
Materials for Marking
Steel • Stainless Steel • Cast Iron • Aluminum
Anodized Aluminum • Brass • Bronze • Copper • Titanium
Tool Steel • Laser-Markable Plastics
Technical Ceramics • Powder-Coated Surfaces
Technical specifications
| Working area, mm | 150 × 150 |
|---|---|
| Work table, mm | 700 × 500 × 800 |
| Laser type | Fiber |
| Laser power, W | 30 |
| Cooling | Air-cooled |
| Laser wavelength, nm | 1064 ±4 |
| Laser operating frequency, kHz | 40 – 60 |
| Marking speed, mm/s | ≤ 7000 |
| Marking depth, mm | ≤ 0,5 |
| Min. line width, mm | 0,01 |
| Min. character size, mm | 0,15 |
| Min. laser spot diameter, mm | 0,005 |
| Repeat positioning accuracy, mm | ±0,001 |
| Laser source lifetime, h | ≤ 100000 |
| Continuous operation time, h | ≤ 16 |
| Control system | Professional controller |
| Interface | USB |
| Control PC | Lenovo G15 G5 laptop |
| Operator protection | Fiber OD5 safety glasses |
| Rotary axis | Installed |
| Start control | Foot pedal |
| Power supply | 220 V ±10%, 50 Hz |
| Overall dimensions (L × W × H), mm | ~ 550 × 350 × 700 |
| Weight, kg | ~ 39,5 |
The VECTOR ML-30 is a compact fiber laser marking machine for fast, high-precision marking of serial numbers, logos, QR and Data Matrix codes, barcodes, text, and graphics on metals and select non-metal materials. The 30 W fiber laser delivers consistent marking quality, requires no consumables, and is built for continuous long-term operation in production environments.
The operator receives a ready-to-run package that includes a professional controller, work table, laptop, rotary axis for cylindrical parts, foot pedal, and operator protective equipment. Production can start immediately after equipment setup.
Key Advantages:
- 30 W fiber laser provides fast, high-contrast, permanent marking on metals without altering the geometry of the workpiece.
- High repeatability of ±0.001 mm ensures consistent serial numbers, fine text, logos, and codes in series production.
- Marking speeds up to 7000 mm/s allow efficient integration into production workflows and reduce part processing time.
- Air-cooled laser source needs no chiller, simplifies operation, and cuts maintenance costs.
- Rotary axis included enables marking on shafts, bushings, rings, pipes, couplings, and other cylindrical components.
Applications:
- Serial numbers, nameplates, part marking
- Logos, technical data, batch codes, identification marks
- Enclosures, control panels, information plates
- Marking of assemblies, components, and spare parts
- Engraving precious metal items
- Demonstrating laser marking technology and training operators
Typical Workpieces:
Nameplates • Badges • Logos • QR & Data Matrix codes • Barcodes • Tooling • Electronic enclosures • Flanges • Shafts • Bushings • Couplings • Knives • Molds • Dies • Jewelry • Promotional items
